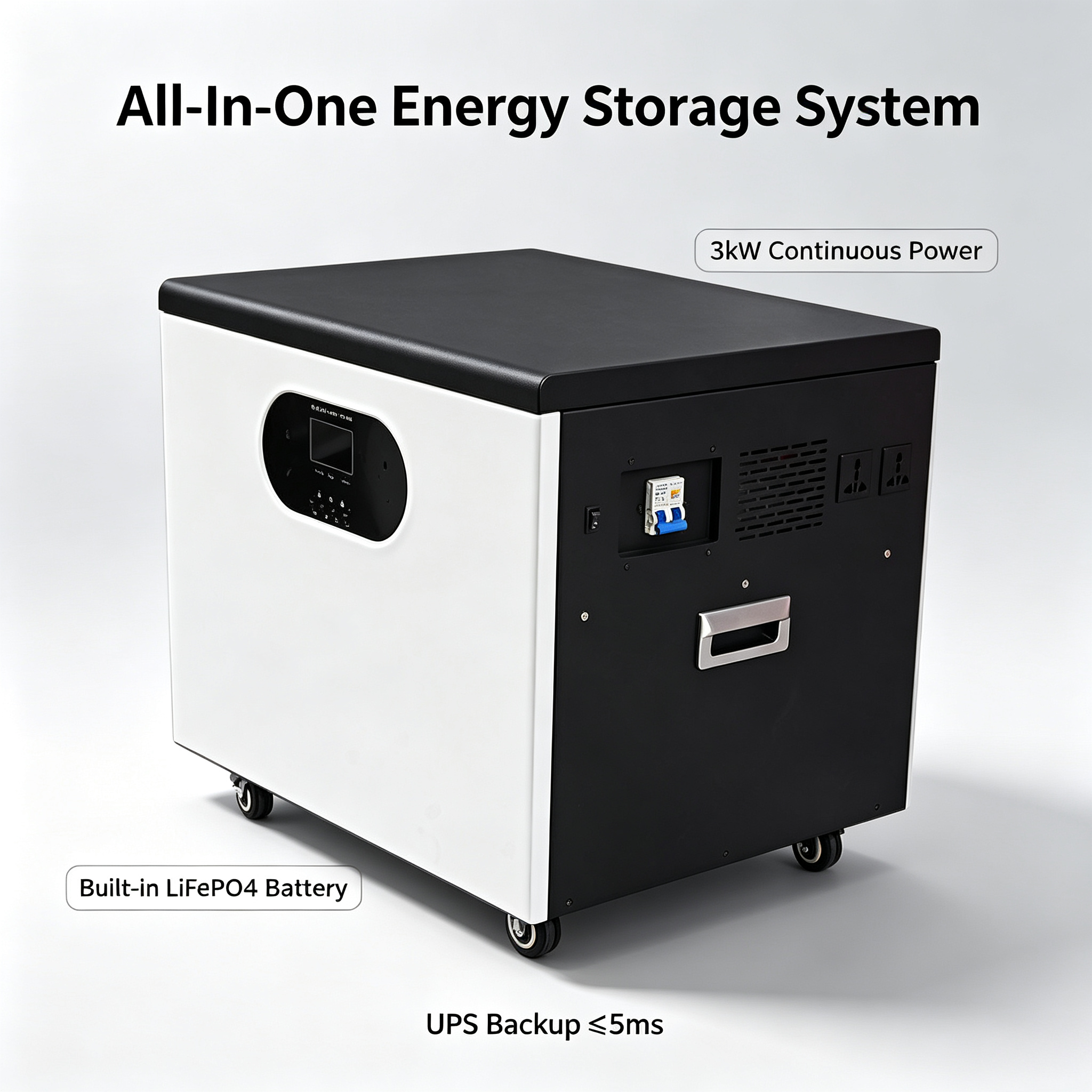

3KW High Frequency Sine Wave Hybrid Inverter

1. Product Performance

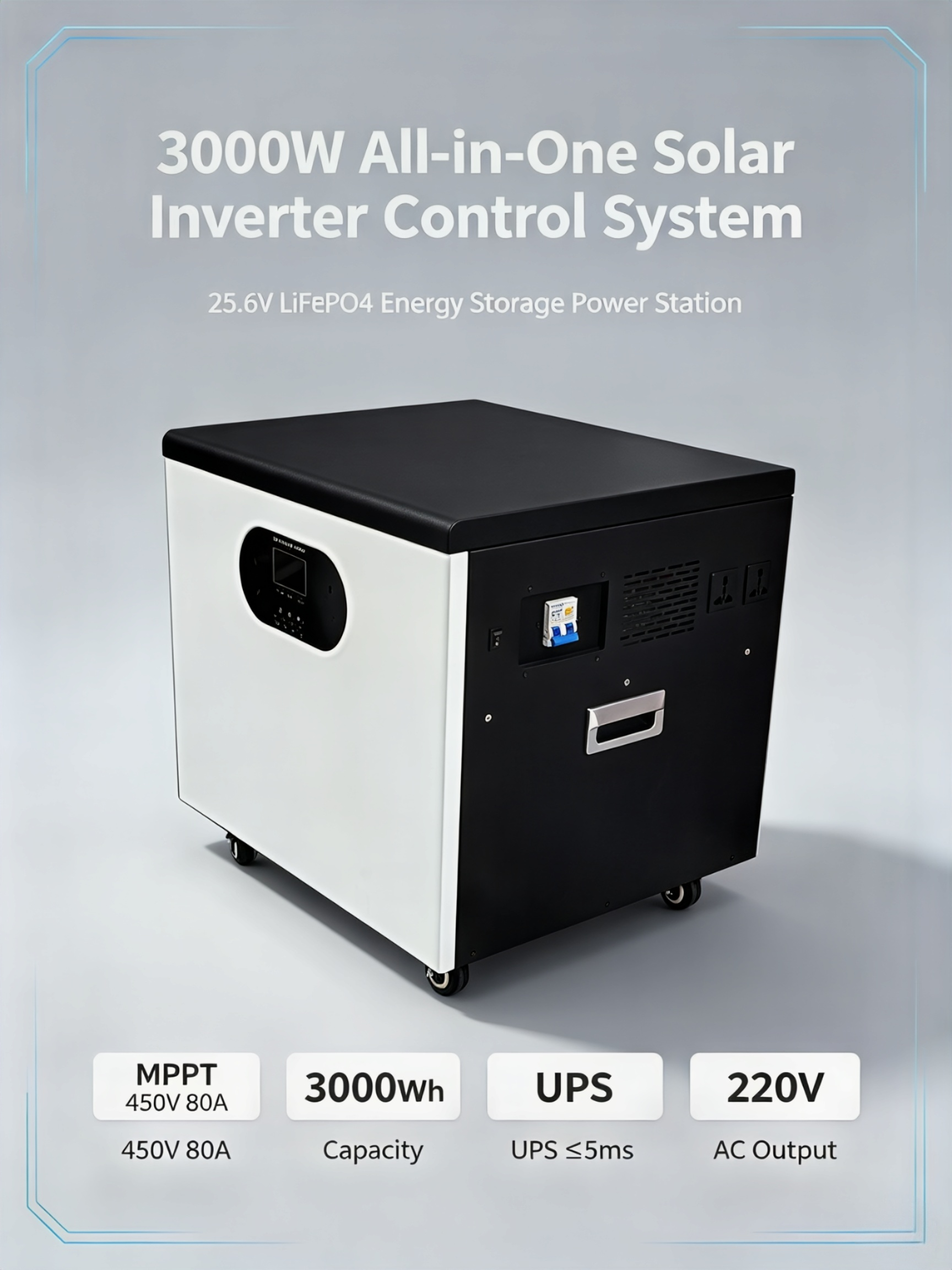

It is a 3000W high-frequency pure sine wave solar hybrid inverter, equipped with 450V 80A MPPT solar charge controller. Built-in 25.6V 120Ah LiFePO4 battery with 3000Wh total capacity. It supports dual charging by solar panels and municipal electricity with 20A mains charging current. It steadily outputs 220V/50Hz AC power, rated power 3000W, max overload power 3300W. UPS transfer time ≤5ms realizes seamless power switching. Full protections including over-temperature, overvoltage, under-voltage, overcurrent, short circuit and reverse connection are equipped, with 80℃ temperature protection for reliable operation.

2. Product Advantages

① All-in-one integrated structure: Integrate inverter, MPPT controller, energy storage battery and UPS system, plug and play without extra accessories;

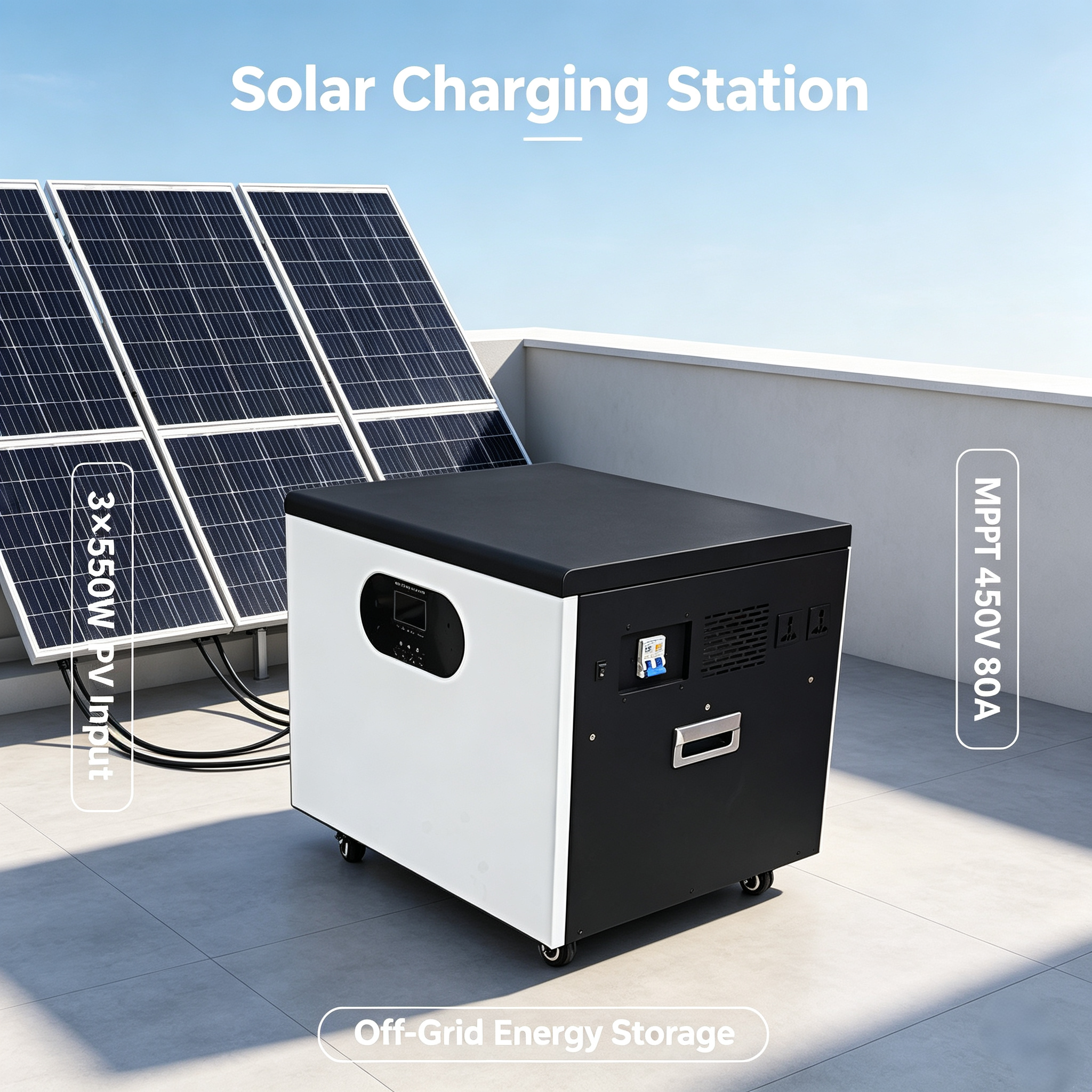

② High charging efficiency: MPPT technology maximizes solar energy harvesting, 3 pieces of 550W solar panels can quickly charge the battery to cut electricity bills;
③ Wide load compatibility: Pure sine wave output safely drives refrigerators, computers, water pumps and all household appliances;
④ Uninterrupted power supply: Millisecond-level switching avoids sudden shutdown of network and monitoring devices during blackouts;
⑤ Easy to move: Universal casters at the bottom allow flexible movement indoors and outdoors;
⑥ Durable battery: LiFePO4 battery with built-in BMS system features long cycle life and excellent temperature adaptability.

3. Application Scenarios

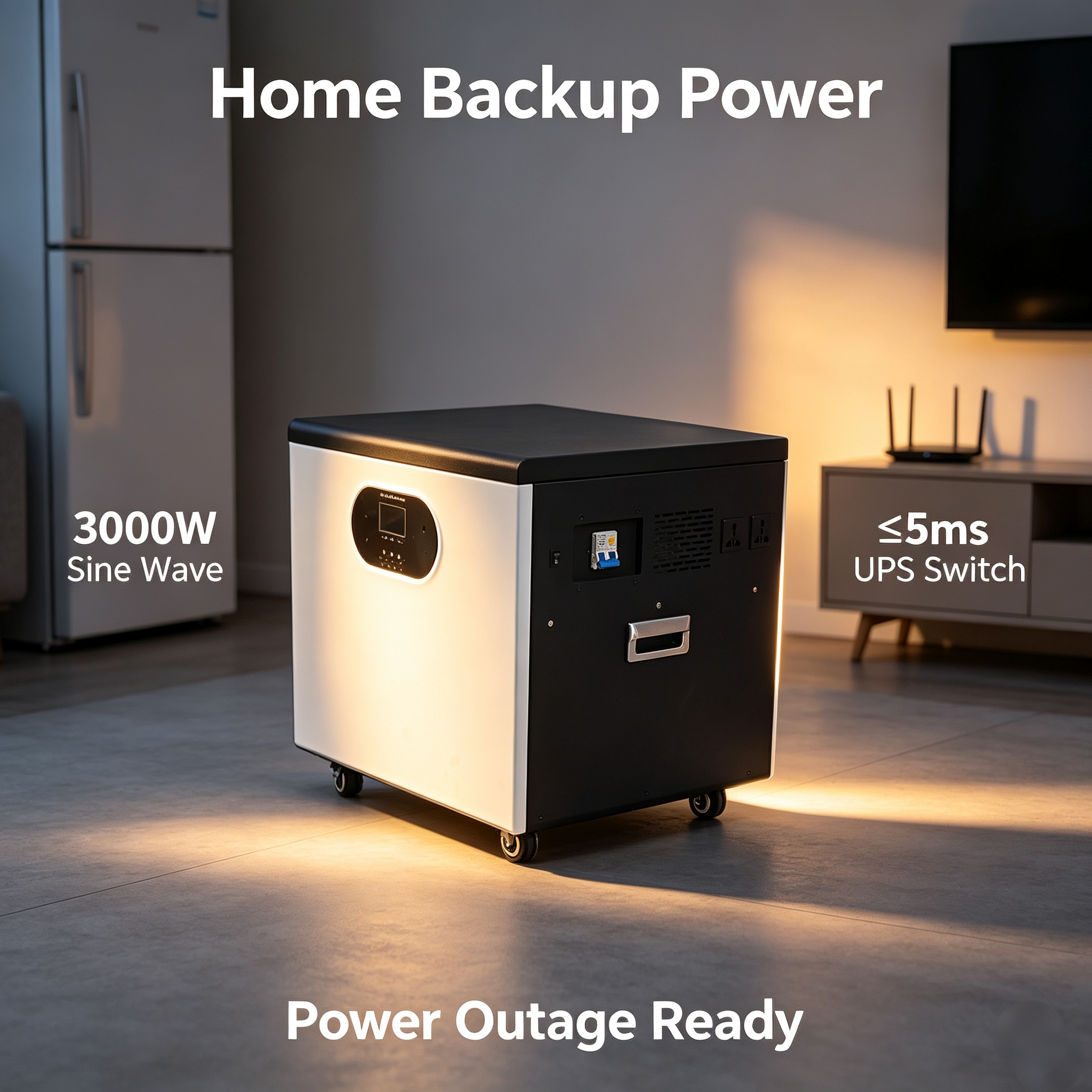

① Home emergency backup power: Keep refrigerators, lights and routers running during unexpected power cuts;
② Off-grid home solar system: Store solar energy in daytime for night use to save power cost for villas & houses;

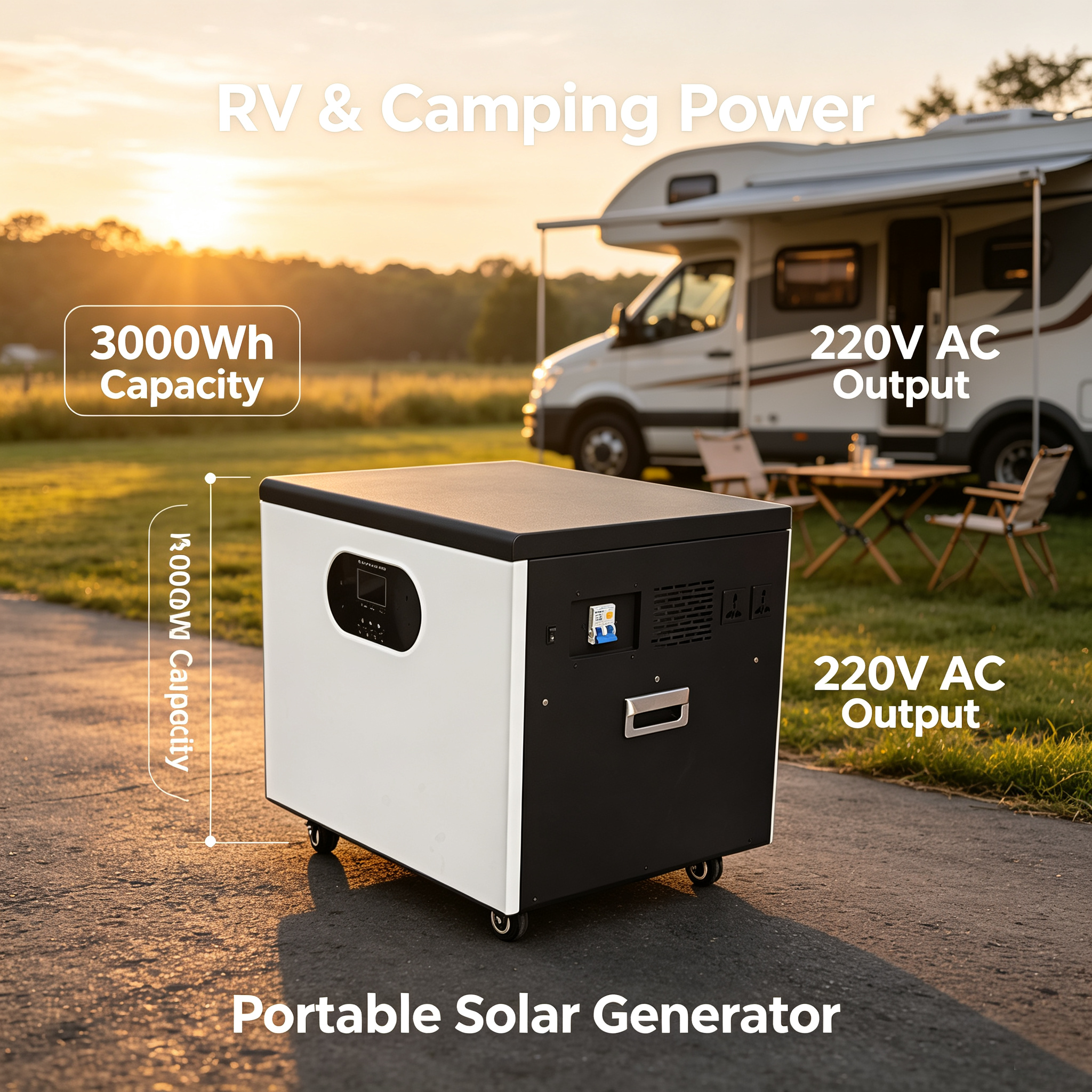

③ RV & outdoor camping power supply: Meet daily electricity demands for caravans and outdoor trips;
④ Power supply for remote areas: Daily power use for mountain cottages and countryside houses without grid access;

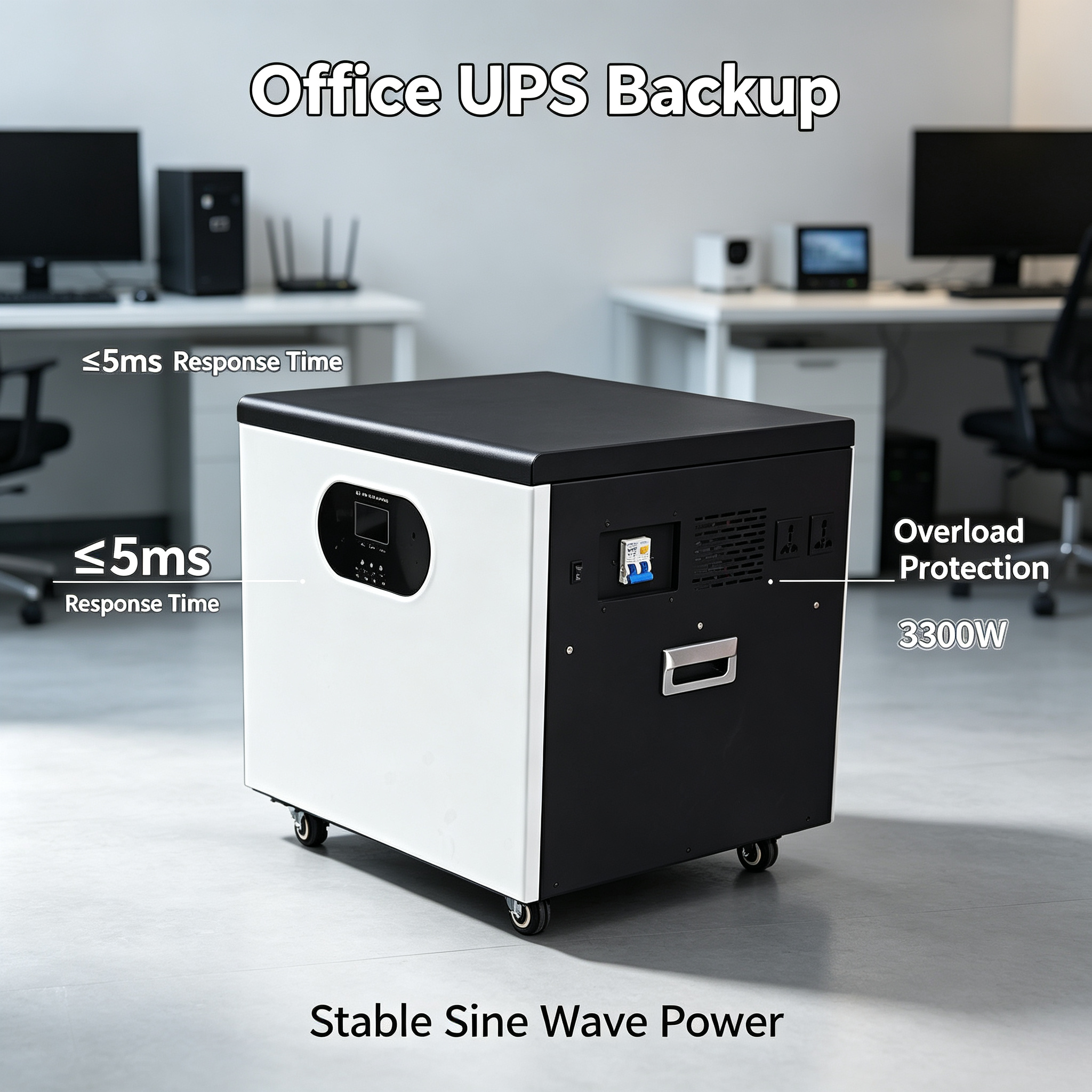

⑤ Backup power for office & monitoring rooms: Stable uninterrupted power supply for small offices and surveillance equipment.
