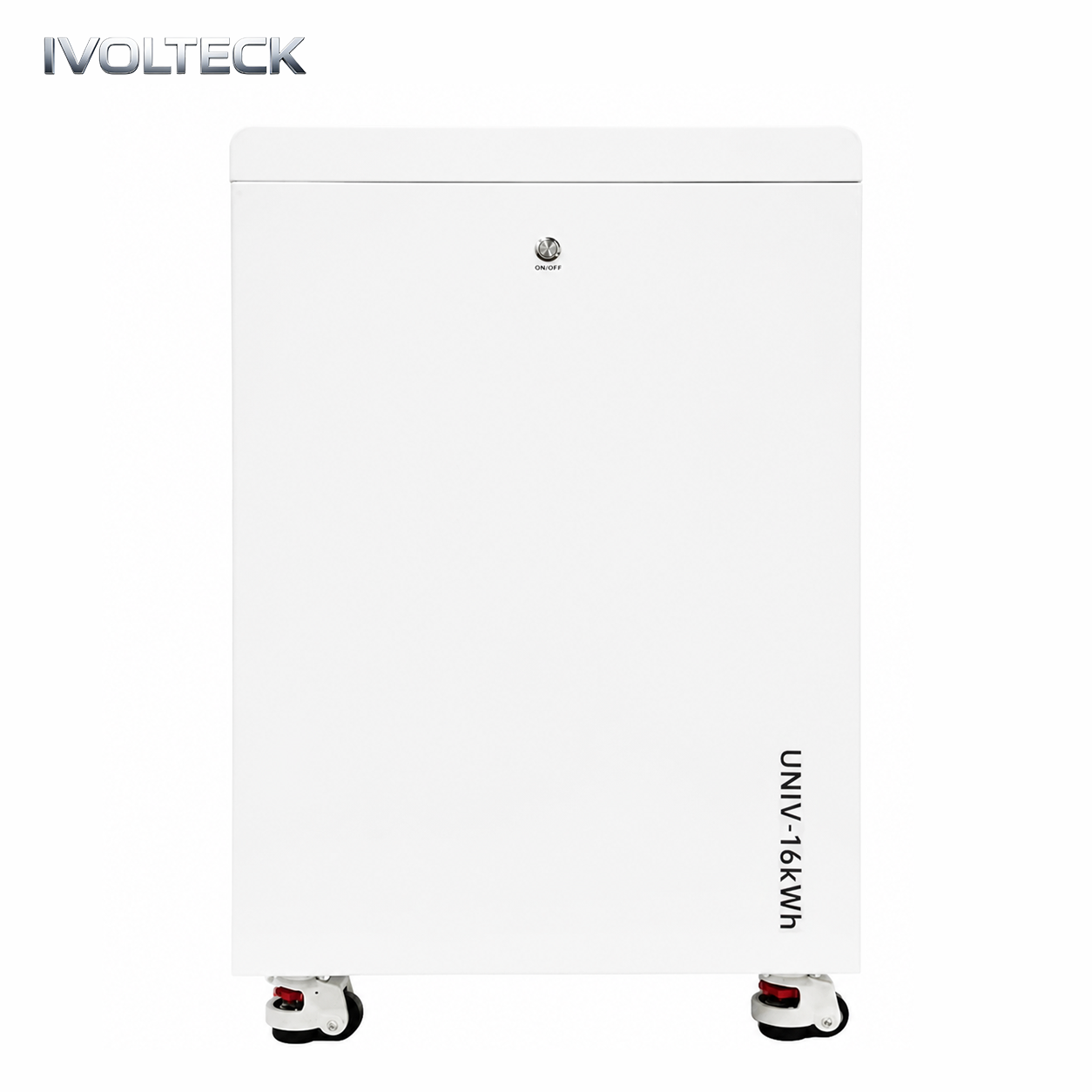

IP65 Waterproof 16.08kWh Home Energy Storage Battery Lockable Universal Casters Floor Mount No Wall Modification Garage Basement Solar Storage OEM ODM
This vertical LiFePO4 energy storage system adopts automotive-grade lithium iron phosphate cells, offering 16.08kWh total energy and 15.11kWh usable energy with 90% DOD deep discharge. It supports a maximum 200A charge and discharge current and allows up to 20 units parallel connection to achieve flexible capacity expansion, perfectly matching power demands of large villas and light commercial PV systems. Equipped with comprehensive intelligent BMS, the battery enjoys over 15 years service life under 25°C operating environment. Featuring IP65 waterproof and anti-drop protection, lockable universal casters and floor-standing design, it can be freely placed in garages, basements and equipment rooms without wall reconstruction. Bluetooth monitoring together with CAN/RS485 communication enables good compatibility with mainstream solar inverters. Stable performance is guaranteed over a wide temperature range.

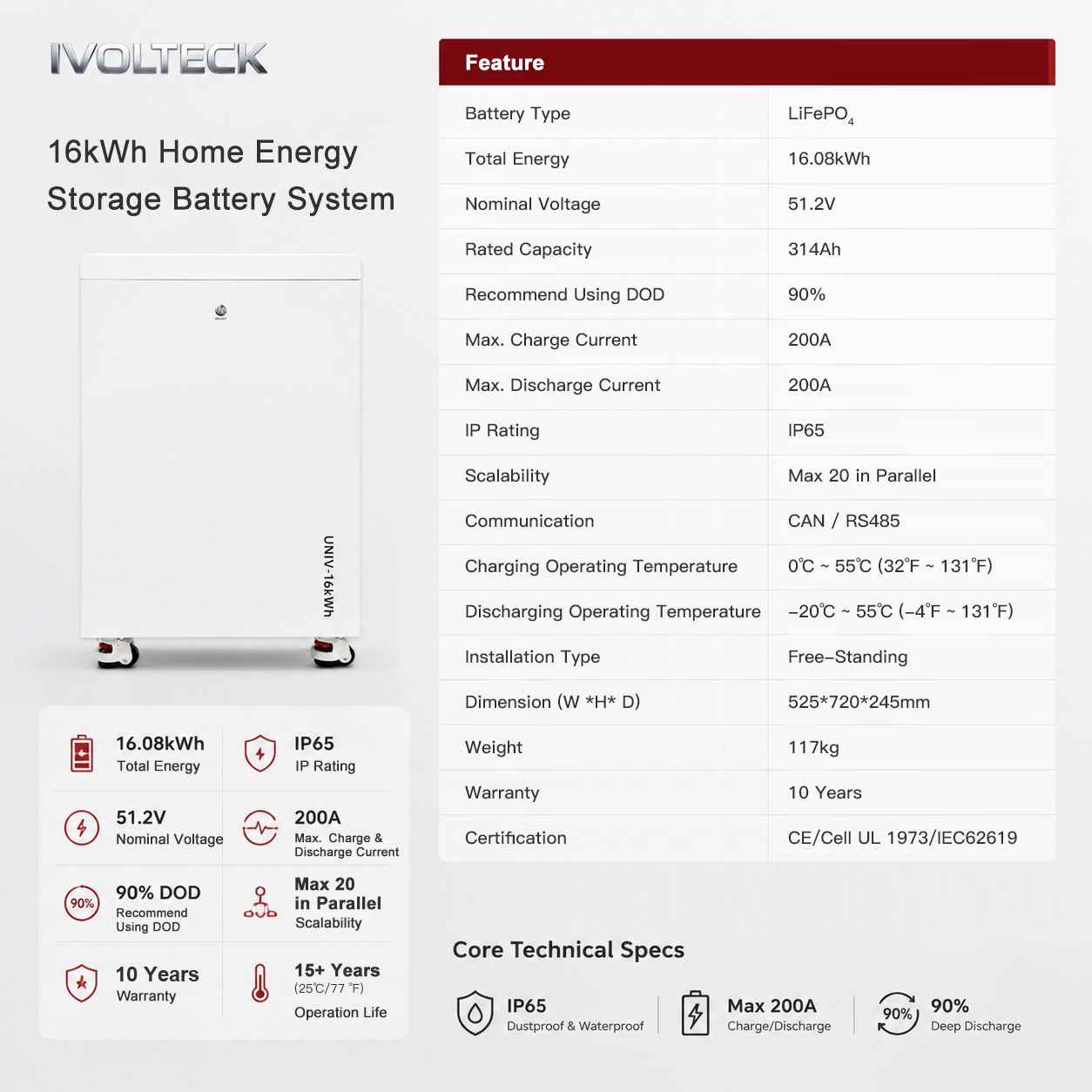

Specifications & Features
Product Description
1. 16.08kWh Large Capacity Energy Storage, High Usable Capacity for Whole Household Power Supply
Adopting automotive-grade LiFePO4 cells, this battery provides 16.08kWh total energy and 15.11kWh usable energy with 90% DOD deep discharge. It efficiently stores surplus solar power to reduce electricity bills and delivers long-duration emergency power supply for the whole house during grid blackouts.

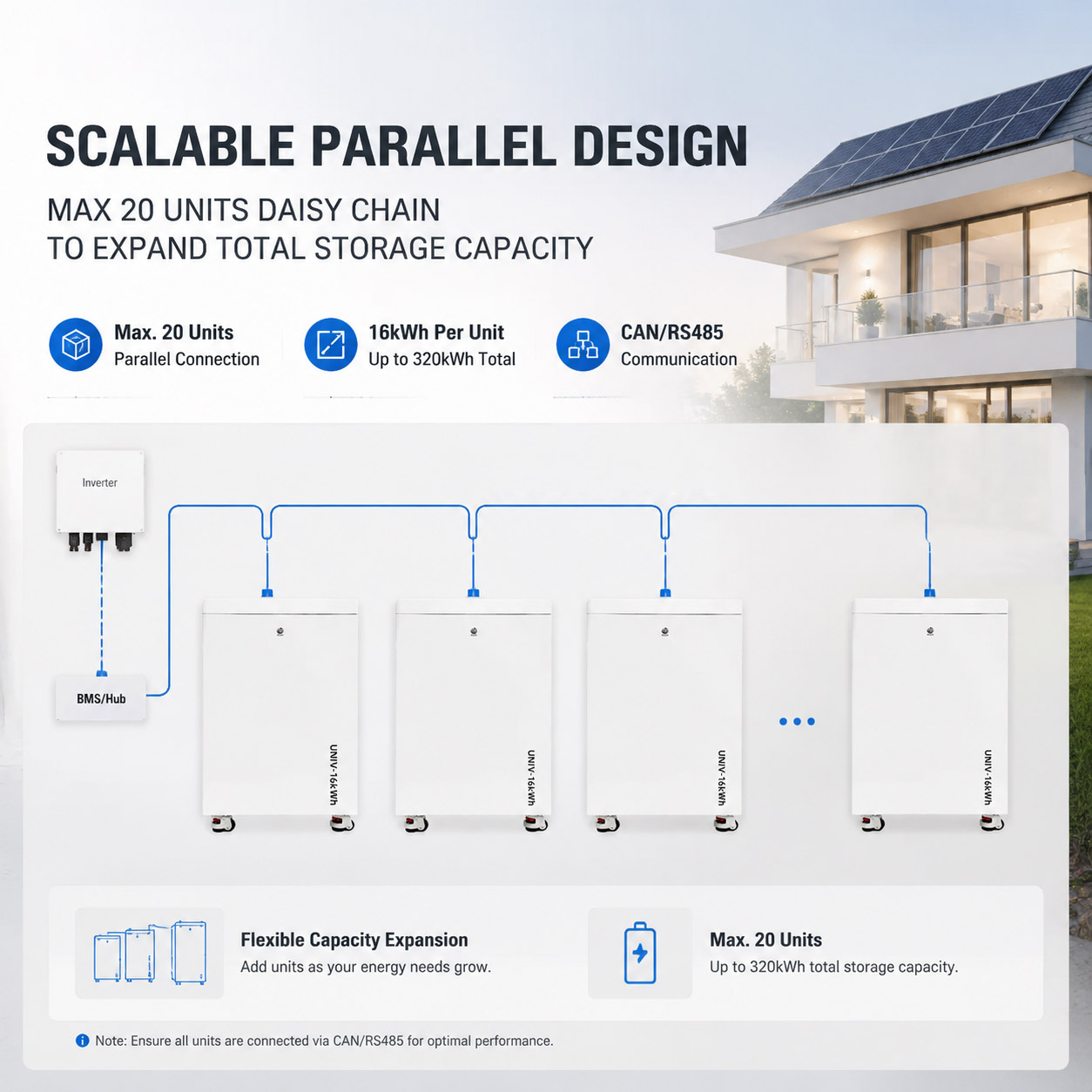

2. Max 200A Charge & Discharge Current, Freely Expandable with Up To 20 Units in Parallel
The maximum charge and discharge current reaches 200A to sustain stable high-power output. The expandable design supports up to 20 units connected in parallel. Users can freely combine capacities to satisfy energy storage demands of large villas and light commercial photovoltaic projects.

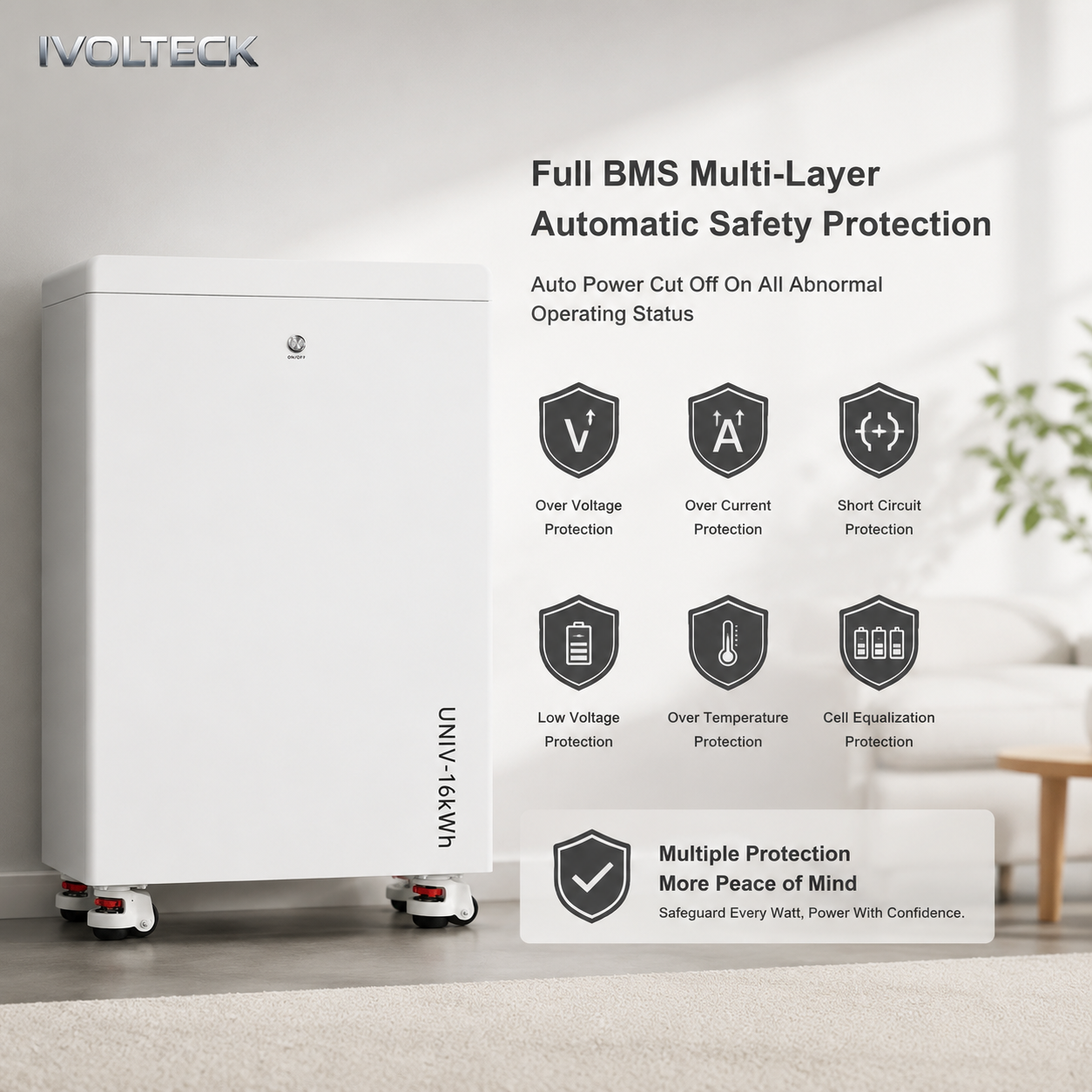

3. Full-Function Intelligent BMS Protection, 15+ Years Service Life with 10-Year Official Warranty
Built-in comprehensive BMS battery management system provides overvoltage, overcurrent, short-circuit, undervoltage, over-temperature protection and cell balance function. The service life exceeds 15 years under 25°C working conditions, backed by reliable 10-year official warranty.
4. IP65 High Protection Rating, Waterproof & Anti-Drop Structure with Superior Environmental Resistance
With IP65 protection grade and waterproof, anti-drop structure, the battery effectively resists water splashes and accidental impacts. It adapts to various complex indoor environments and lowers risks of equipment damage.

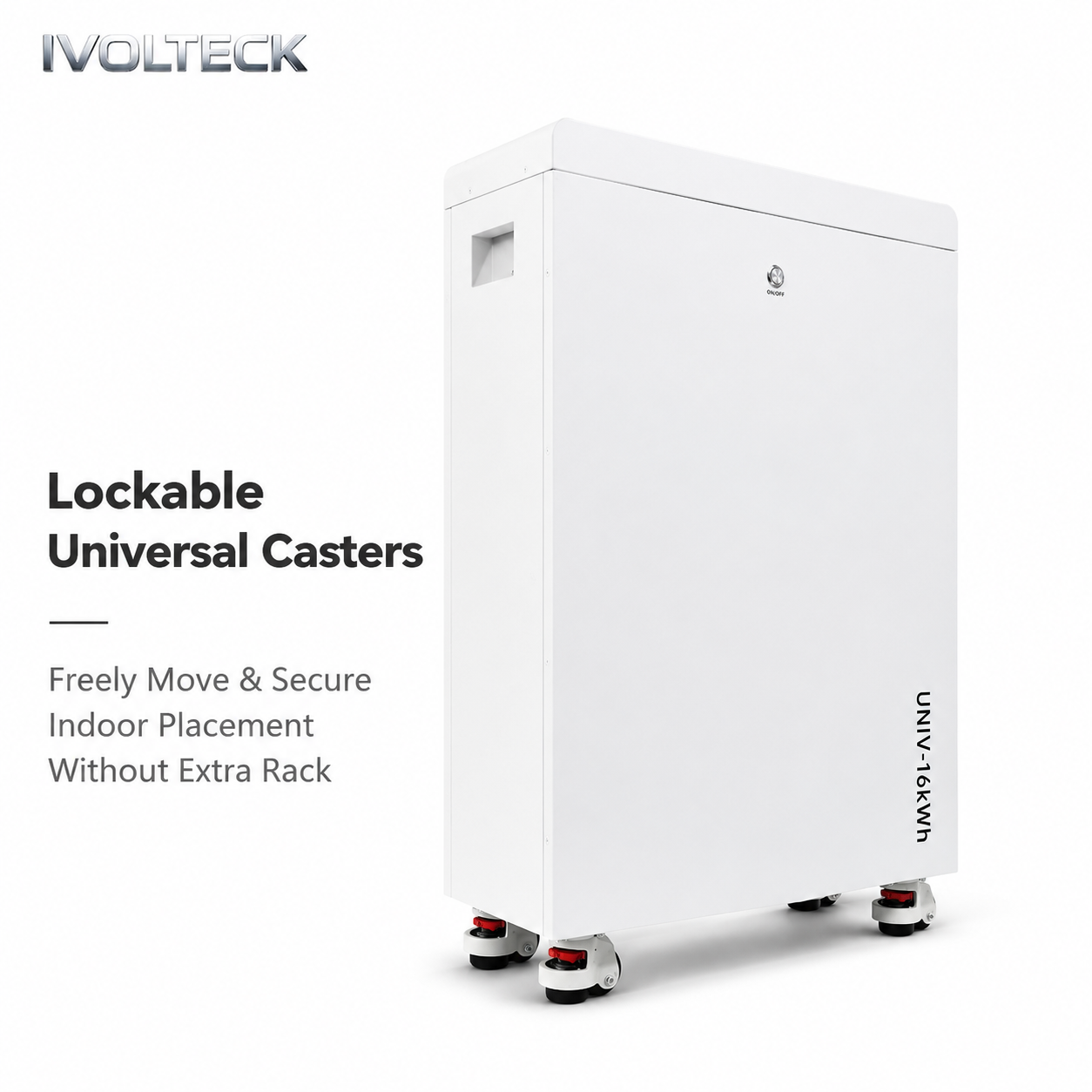

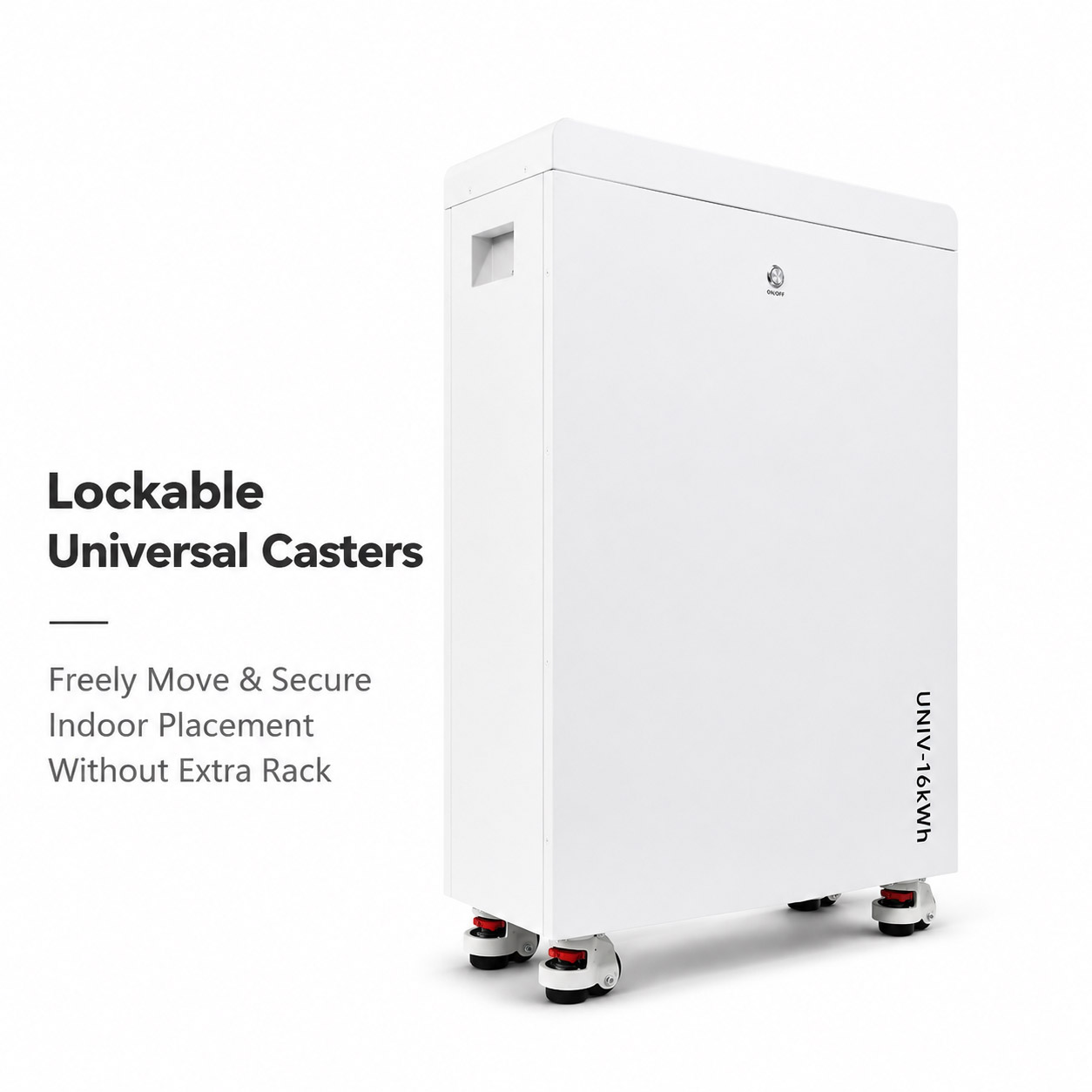

5. Vertical Cabinet with Lockable Universal Casters, Floor-Standing Installation for Flexible Layout
The vertical cabinet is fitted with lockable universal casters. Dimensions: 525720245mm, net weight 117kg. Floor-standing installation requires no wall modification. It can be easily moved and arranged in garages, basements and equipment rooms.

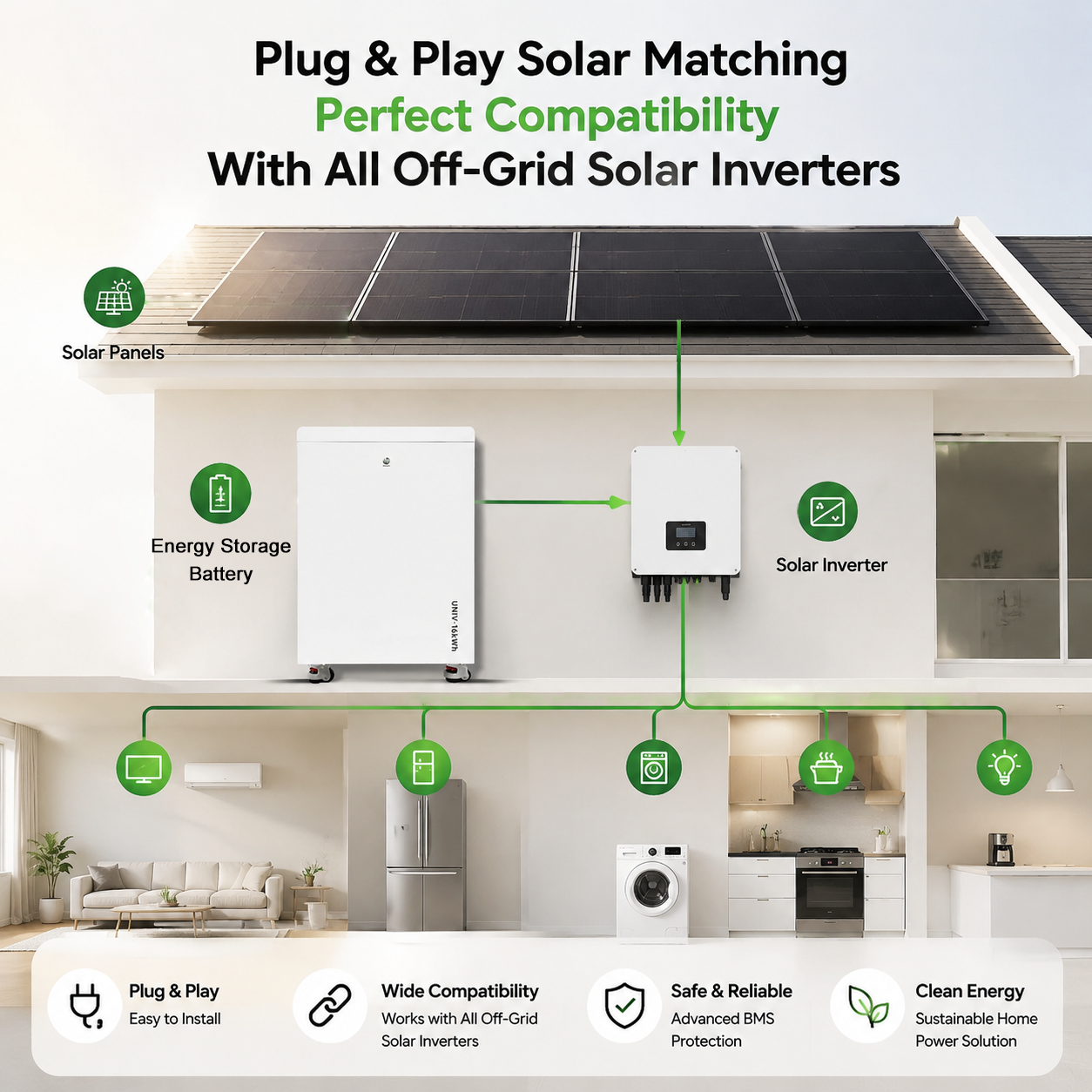

6. Bluetooth Monitoring & Dual Communication Protocols, Wide-Temperature Operation, Complete International Authoritative Certifications
It supports Bluetooth monitoring as well as CAN/RS485 communication, compatible with mainstream solar inverters. It operates stably over wide temperature range: 0℃~55℃ for charging, -20℃~55℃ for discharging. The product has obtained CE, UL1973, IEC62619, UN38.3, MSDS certifications to meet global market access requirements.
