HomeProductsVertical 10.55kWh Home Battery Storage 10-Year Warranty Solar Energy Backup Power
Vertical 10.55kWh Home Battery Storage 10-Year Warranty Solar Energy Backup Power
Product Quality
4.9
Response Speed
4.9
Problem Solving
5.0
10.55kWh
Total energy
51.2V
Nominal voltage
90%
Recommended DOD

Vertical 10.55kWh Home Battery Storage 10-Year Warranty Solar Energy Backup Power

Home Energy Storage System🔥 Best Seller

Stable energy storage performance, supporting parallel expansion of multiple units Full-featured BMS with multiple layers of safety protection Stable operation over a wide temperature range with ultra-long service life Full set of international safety transport certifications

CE Certified · IEC62619 · UL9540 · ISO 9001 · FOB/CIF available

Specifications & Features

ModelIVT10kWh-01-A
NameVertical Home Energy Storage System
Trade MarkIVOLECK
OriginChina
Total energy (kWh)10.55
Available energy (kWh)9.91
Nominal voltage (Vd.c)51.2
Voltage Range (Vd.c)44.8~57.6
Rated Capacity (Ah)206
Recommended Current (A)(Charge)103
Recommended Current (A)(Discharge)103
Maximum Current (A)(Charge)150
Maximum Current (A)(Discharge)150
Recommended DOD0.9
ScalabilityMax 20 in parallel
Dimensions (Width × Height × Depth) (mm)520*620*240
Weight (kg)90
BMS FunctionOvervoltage/Overcurrent protection, Short circuit protection, Low voltage protection, Overtemperature protection, Battery balancing
Standard FunctionsAnti-drop/Waterproof
CommunicationCAN/RS485
Operating Temperature(Charge)0℃~55℃(32°F~131°F)
Operating Temperature(Discharge)-20℃~55℃(-4°F~131°F)
Storage Temperature-20℃~55℃(-4°F~131°F)
IP RatingIP65
Installation TypeVertical
Cooling TypeNatural
Operating EnvironmentIndoor (5%~95% relative humidity) non-condensing
Altitude≤2000 m
Warranty10 years
Service LifeMore than 15 years (25℃/77°F)
CertificationsCE/Cell UL 1973/IEC62619
Transport CertificationUN38.3/MSDS
OEMAvailable
Order of SampleAvailable
MOQ20
Lead Time15 days

Product Description

Total capacity 10.55kWh, usable energy 9.91kWh with 90% DOD. Max 150A charge/discharge current, up to 20 units parallel for capacity expansion.

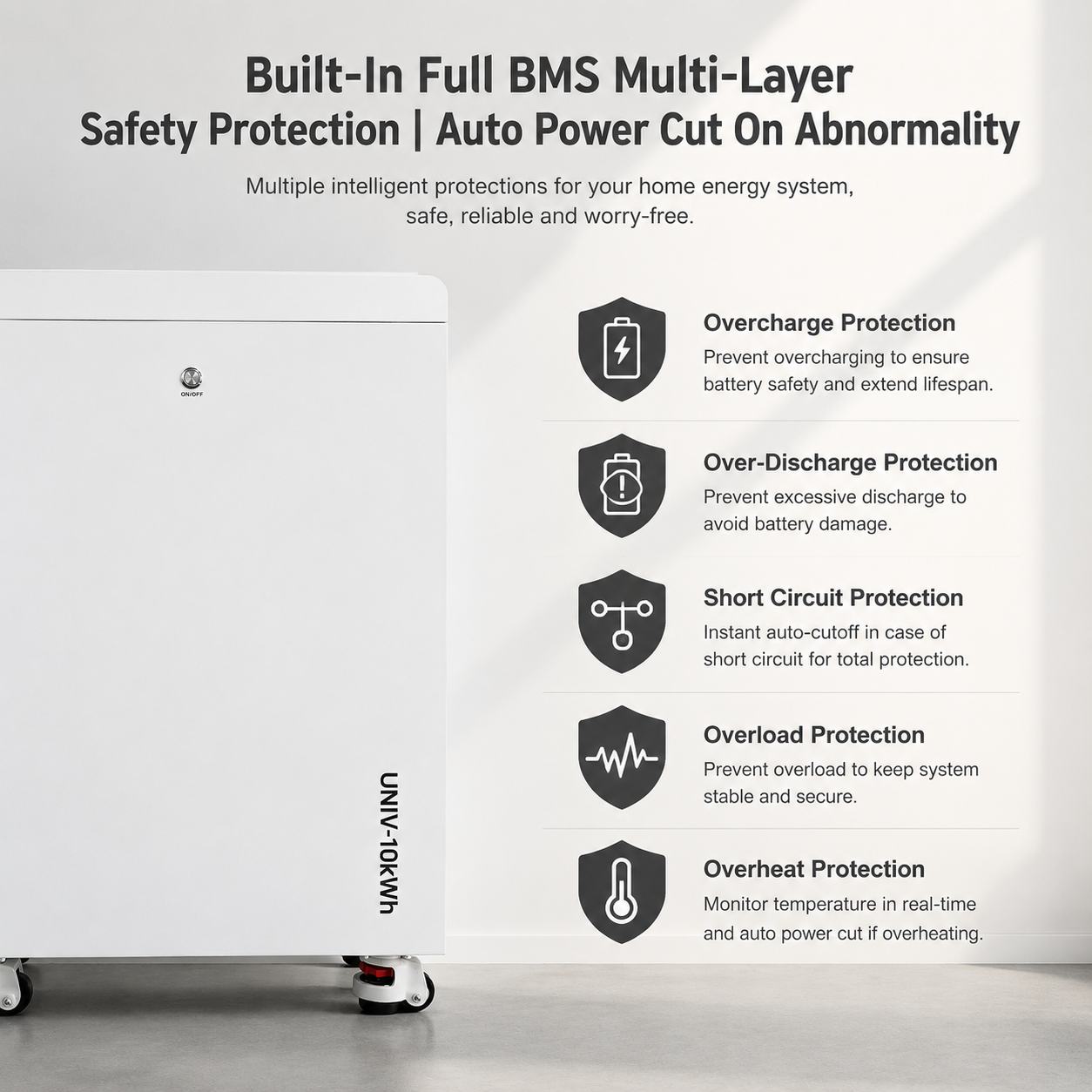

Full-featured BMS provides overvoltage, overcurrent, short circuit, low voltage & overheat protection plus cell balancing, with CAN/RS485 communication port.

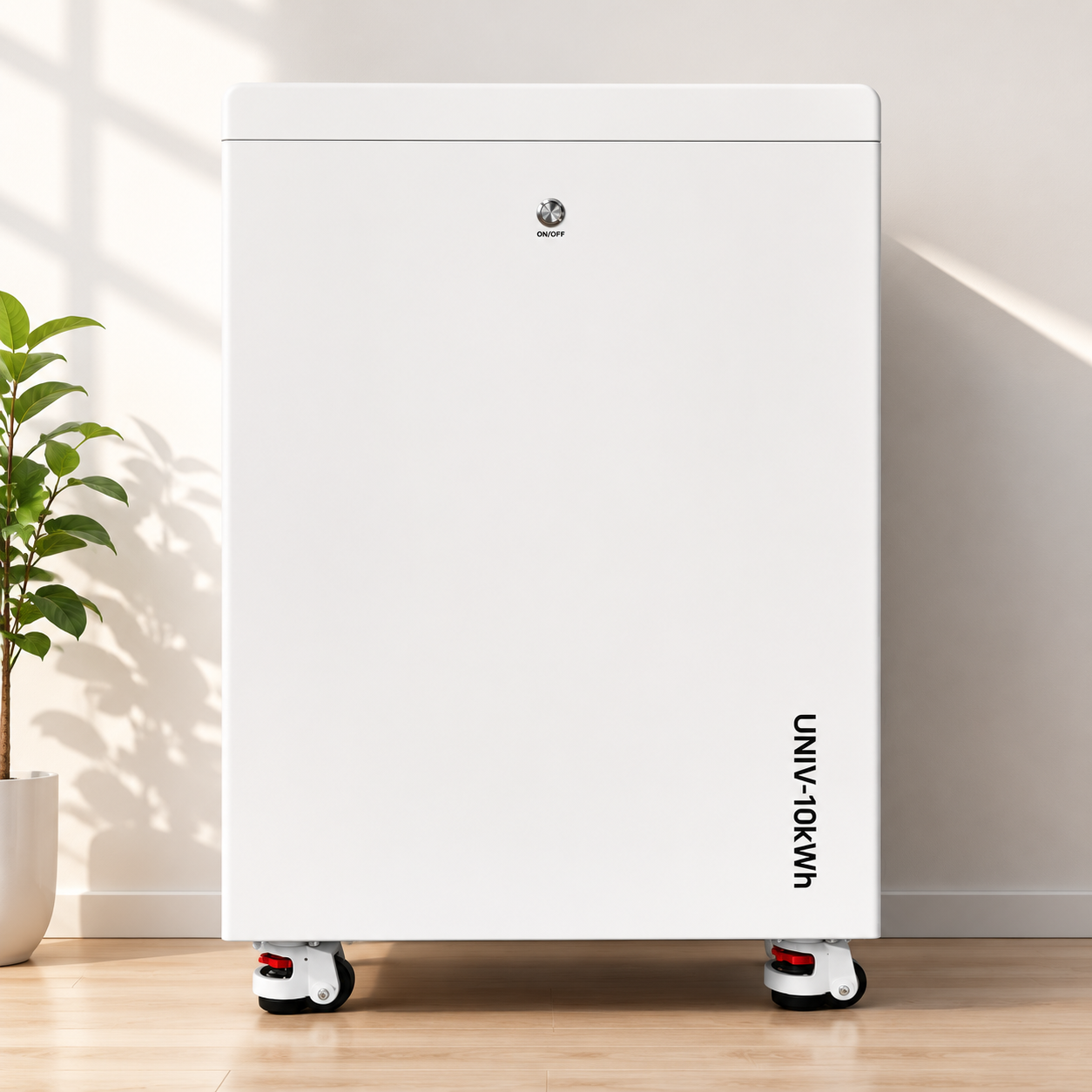

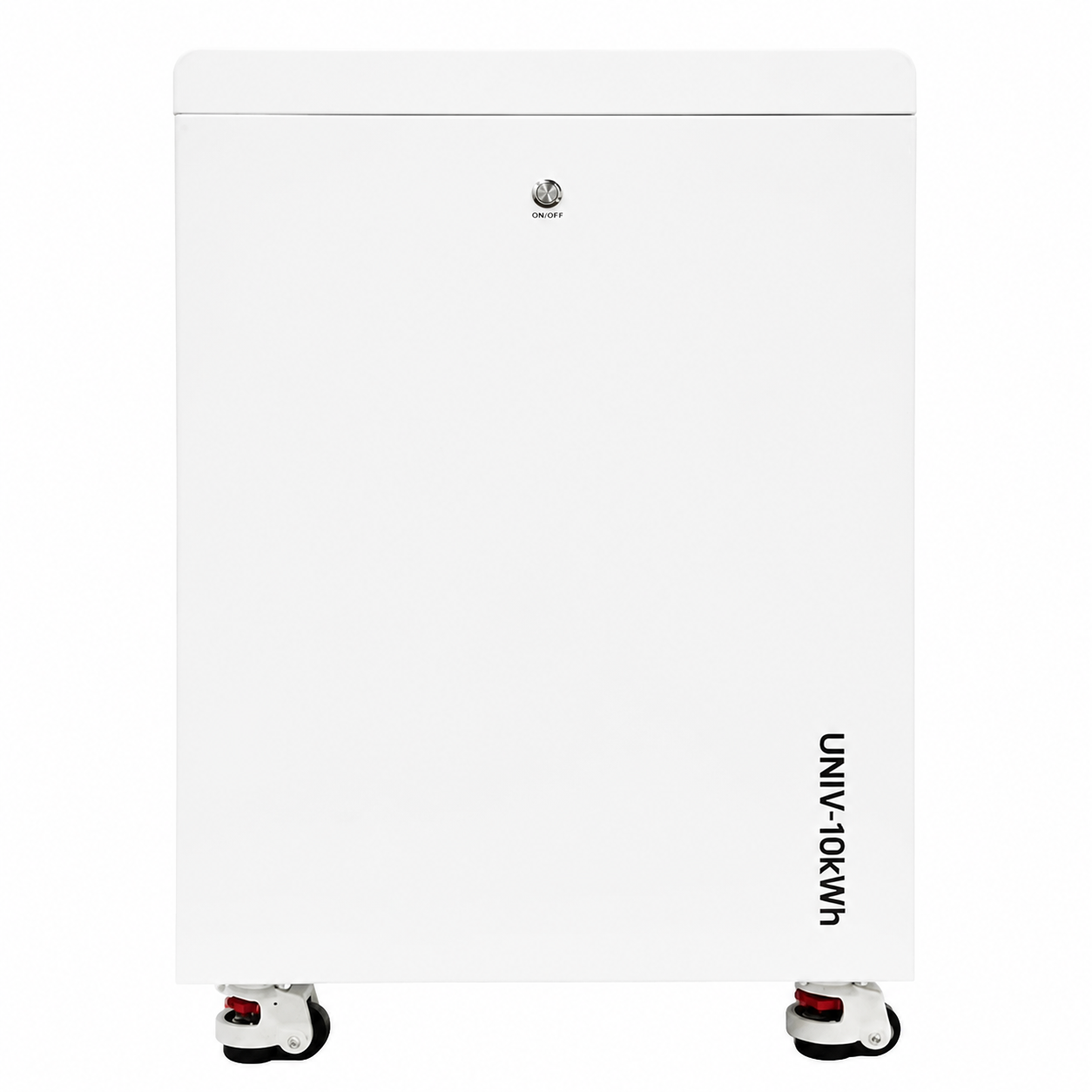

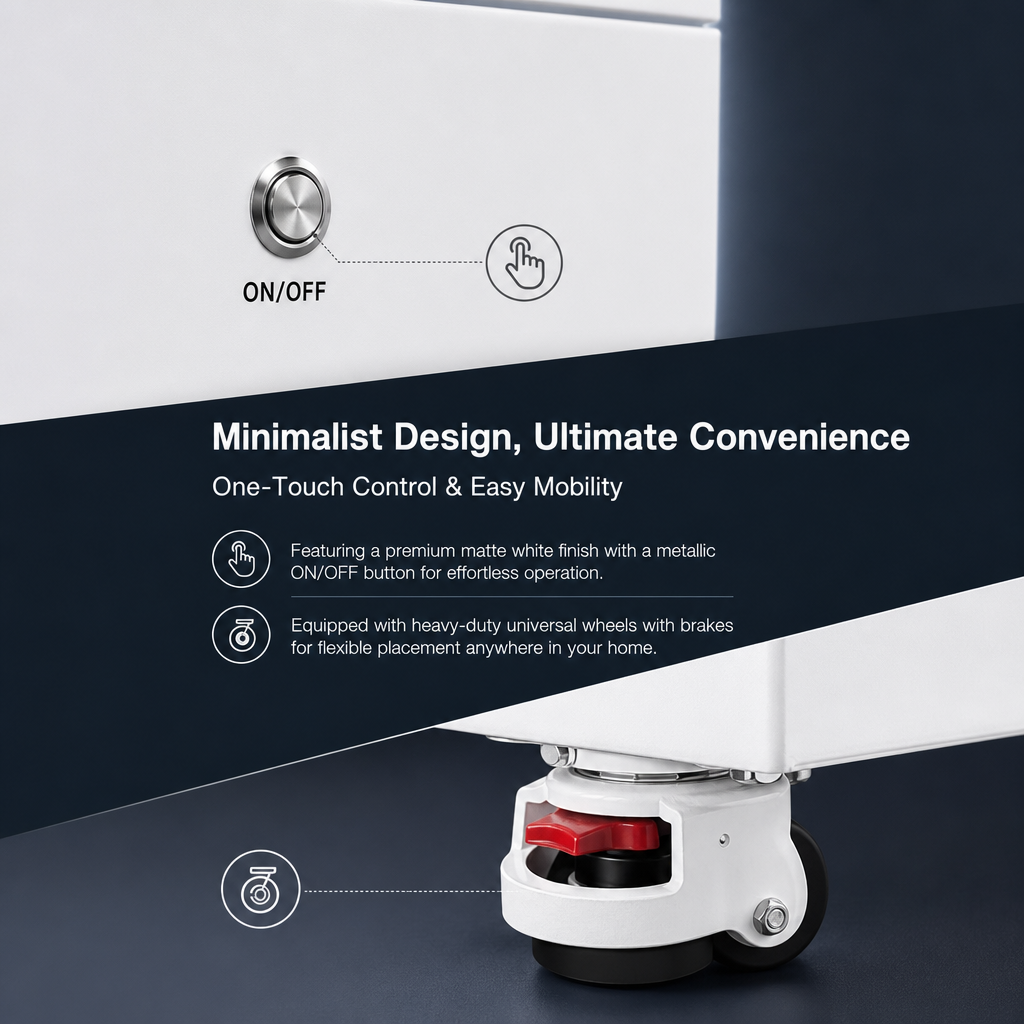

Vertical compact cabinet with casters for easy moving, passive natural cooling.

Wide operating temperature range (0~55℃ charging /-20~55℃ discharging), works stably under 2000m altitude. 10-year warranty, service life over 15 years.

Certified by CE, UL1973, IEC62619; UN38.3 & MSDS shipping certifications meet global residential energy storage export standards.
